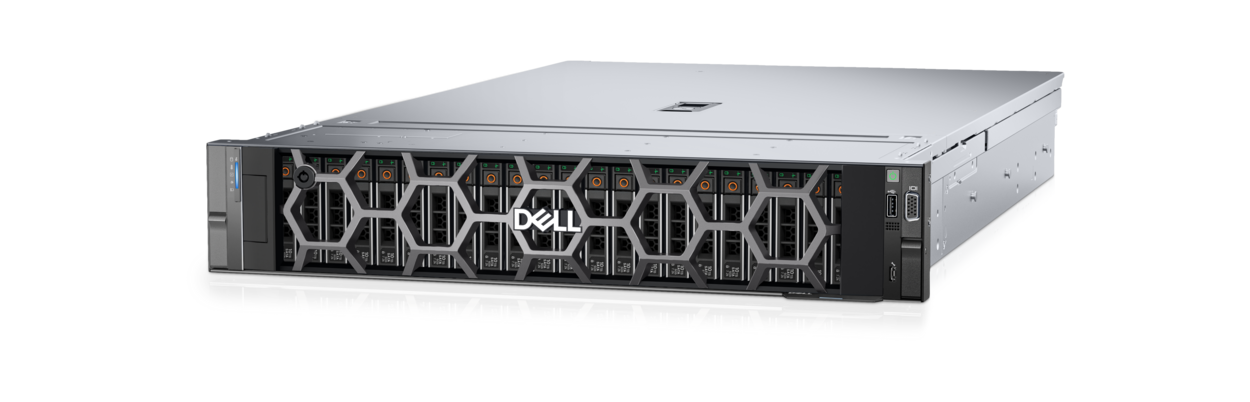

精確型號原廠照片。
產品規格
核心規格
| 外形規格 | 2U two-socket rack server |
|---|---|
| 處理器 | Up to two 4th/5th Gen Intel Xeon Scalable processors; up to 56 cores for 4th Gen or 64 cores for 5th Gen |
| 記憶體 | 32 DDR5 DIMM slots; RDIMM up to 8 TB; speeds up to 4800 MT/s |
| 儲存空間 | Chassis options up to 12 × 3.5-inch or up to 24 × 2.5-inch SAS/SATA/NVMe drives |
| 顯示卡支援 | Up to 2 double-wide or 6 single-wide GPUs |
| 管理功能 | iDRAC9、iDRAC Direct、iDRAC RESTful API with Redfish、OpenManage |
| 網路 | Optional OCP 3.0 network card; dedicated iDRAC Ethernet management port |
| 電源 | Two redundant AC or DC power supply units |
| 散熱 | Optional Direct Liquid Cooling |
| 支援作業系統 | Windows Server、Red Hat Enterprise Linux、SUSE Linux Enterprise Server、VMware ESXi、Ubuntu Server |
功能說明
產品特點
- 依場域需求評估設備配置。
- 整合範圍依實際型號驗證與專案約定。
選型與整合評估
- 盤點運算、儲存、備援與機櫃需求。
- 依實際配置核對廣田系統部署與維護條件。
